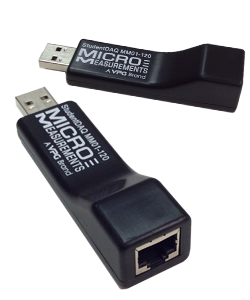

Student Data Acquisition Device


The Student Data Acquisition Device is a single-channel, USB-powered measurement device for use with resistive strain gages (strain gauges). Internal bridge completion supports full-, half-, and quarter-bridge configurations.

This device is designed for use in applications where a convenient, low-cost, easy-to-use strain gage (strain gauge) measurement is required. It is ideal for classroom environments or gage installation verification.

Operation of the StudentDAQ is performed with commands sent via a USB connection. User-friendly application software is provided to control the StudentDAQ with a Microsoft® Windows®-based personal computer. Complete source code, written in National Instruments® LabVIEW® is provided. A .NET interface is also included.

The integrated RJ-45 jack simplifies strain gage (strain gauge) connection. Providing a robust and stable connection, one RJ-45 plug is included, which is easily attached to 326-DFV cable using a standard RJ-45 crimp tool.

Features

  • Single-channel strain gage (strain gauge) data acquisition

  • Hardware and software support for full-bridge, half-bridge, and quarter-bridge circuits
    (120 O, 350 O, 1 kO)

  • Built-in bridge completion

  • 3-wire strain gage (strain gauge) connection

  • 80-Hz data rate

  • Fixed excitation of 2.5 V

  • Input range of ±16,000 µe

  • Powered via the USB interface

  • Intuitive, user-friendly software

  • RJ-45 connector is included with each StudentDAQ

  • No calibration is required

StudentDAQ

Software: StudentDAQ (263MB)
